單模光纖網路分流器
•1U 機框可裝載4個模組，每個模組最多提供4組TAP
•Plug & Play，不需連接電源
•標準LC接頭
TAP是用以監控網絡的硬體工具。光纖TAP均為被動式設計，專門設計的硬體，用以100%複製網路流量至您的監控工具。
被動式的TAPs，不需要安裝電源即可運作，因此不會有因為斷電而造成link down的疑慮存在。
Garland Technology亦提供高密度光纖網路TAP機箱，在需要監控大量光纖link的場合，提供客戶高C/P值又節省機櫃空間的方案選擇。
• 100% 網路透視能力
• 100% 安全且隱形，沒有IP，沒有MAC，沒有駭客入侵的疑慮
• 實體層錯誤亦會轉發
• 支援Jumbo frames
• 1U 機框可裝載4個模組，每個模組最多提供4組TAP
• 獨家設計，在1U 機框內提供 28/ 56 TAP
• Plug & Play 安裝容易，不用設定，不用連接電源
|
Model No. |
Network Speed |
Ports |
No. of TAPs |
Split Ratio* |
Wavelengths |
Media |
Connector/Mode |
|
RMP-1U |

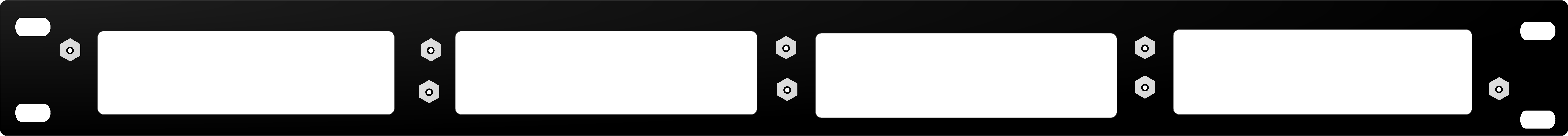

1U 4 Slot Rack Mount Plate-Blank.png |
1U Rack Mount Kit - Hold up to 4 Modules, each Mod can have 1, 2, 3 or 4 portable TAPs |
|||||
|
1/10/25/40/100G |
|
1 |
50/50 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
|

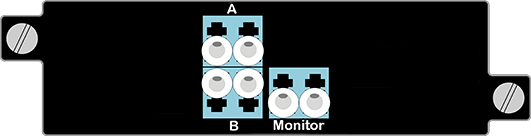

OS1701 |
1/10/25/40/100G |
|
1 |
70/30 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS2501 |
1/10/25/40/100G |
|
1 |
50/50 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
OS2701 |
1/10/25/40/100G |
|
1 |
70/30 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
|
|||||||
|
1/10/25/40/100G |
|
2 |
50/50 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
|

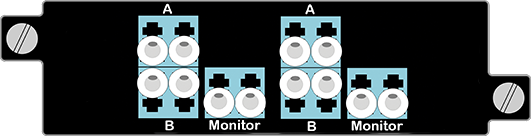

OS1702 |
1/10/25/40/100G |
|
2 |
70/30 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS2502 |
1/10/25/40/100G |
|
2 |
50/50 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
OS2702 |
1/10/25/40/100G |
|
2 |
70/30 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
|
|||||||
|
OS1503 |
1/10/25/40/100G |
|
3 |
50/50 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS1703 |
1/10/25/40/100G |
|
3 |
70/30 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS2503 |
1/10/25/40/100G |
|
3 |
50/50 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|

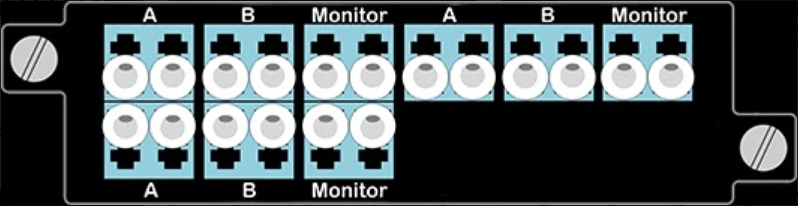

OS2703 |
1/10/25/40/100G |
|
3 |
70/30 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
|
|||||||
|
OS1504 |
1/10/25/40/100G |
|
4 |
50/50 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS1704 |
1/10/25/40/100G |
|
4 |
70/30 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS2504 |
1/10/25/40/100G |
|
4 |
50/50 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|

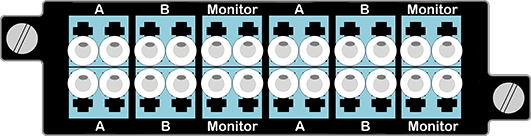

OS2704 |
1/10/25/40/100G |
|
4 |
70/30 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
*另有其他分光比可客製 60/40, 80/20, or 90/10 |
|||||||
|
Model No. |
Network Speed |
Chassis Size |
No. of TAPs |
Split Ratio* |
Wavelengths |
Media |
Connector/Mode |
|
OS15028 |
1/10/25/40/100G |
Chassis 1U |
28 |
50/50 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS17028 |
1/10/25/40/100G |
Chassis 1U |
28 |
70/30 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS25028 |
1/10/25/40/100G |
Chassis 1U |
28 |
50/50 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
OS27028 |
1/10/25/40/100G |
Chassis 1U |
28 |
70/30 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
|
|||||||
|
OS15056 |
1/10/25/40/100G |
Chassis 1U |
56 |
50/50 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS17056 |
1/10/25/40/100G |
Chassis 1U |
56 |
70/30 |
1310/1550nm |
Fiber-OS1 |
LC Single-mode Fiber |
|
OS25056 |
1/10/25/40/100G |
Chassis 1U |
56 |
50/50 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
|
OS27056 |
1/10/25/40/100G |
Chassis 1U |
56 |
70/30 |
1310/1550nm |
Fiber-OS2 |
LC Single-mode Fiber |
