PacketSTAX™複合模組式流量複製器
•自由化設計，機箱可搭配bypass、filtering、aggregation、breakout TAP模組
•高密度設計，1U = 4 TAPS | 2 U = 12 TAPS
•可透過GUI 或 CLI 遠端存取
•傳輸介面轉換：Fiber (SX, LX, ZX) and copper (TX)
•多重條件過濾，支援 MAC, VLAN, IP, DSCP, TCP, UDP 等條件組合
PacketSTAXTM複合模組式流量處理器提供了可擴展的流量處理解決方案，專門為整合TAP功能而設計。PacketSTAX™系統支援”分向複製(breakout)”、”流量彙聚(aggregation)”、”流量篩選(filtering)”、”流量多向複製(regeneration/ SPAN)” 和”旁路(bypass)”模式。模組化的設計，讓網管者可以針對監控和資安工具的需求完全部署和管理，並保證100%的網路正常運行時間的條件下，看到網路裡的所有流量。
Port-to-port aggregation功能結合了過濾功能和聚合功能，確保鏈路聚合在一起，而篩選功能，可確保監視端口不會因非預期的數據而超出負荷。
· 可擴展的模組化TAP系統
o 2U 可安裝 12 TAPs backplane filtering within TAP row
o 1U 最多安裝 4 TAPs backplane filtering between TAPs and port.
· 可選擇管理功能或無管理功能
o 管理控制卡：Ethernet with GUI 以及 Serial with CLI controller
o 無管理功能機箱，可於日後擴充管理功能
· Port Mapping功能可依Layer2~4條件精細篩選流量，僅將所需流量提供至監控工具。
· 多重條件過濾，支援 MAC, VLAN, IP, DSCP, TCP, UDP 等條件組合
· Failsafe 技術：每8ms會對串接的設備進行確認，當識別到設備連線異常，TAP內部連接電路將在小於8ms(< 8 milliseconds)的時間內，Port A與Port B(連接受監控鏈路的介面)自動切換至直連狀態並重新建立連線。
· 介面媒介轉換：Fiber (SX, LX, ZX) to copper (TX) 或 copper (TX) to fiber (SX, LX, ZX)；SX fiber to LX/ZX fiber。
· 雙內建AC或DC電源
· TAP模組均支持熱插拔，完全可配置和可更換
· 支援 jumbo frames及實體層錯誤轉發.
· 支援數據包分割和數據包注入 (彙聚複製模式)
· 100% 安全且隱形，沒有IP，沒有MAC，沒有駭客入侵的疑慮

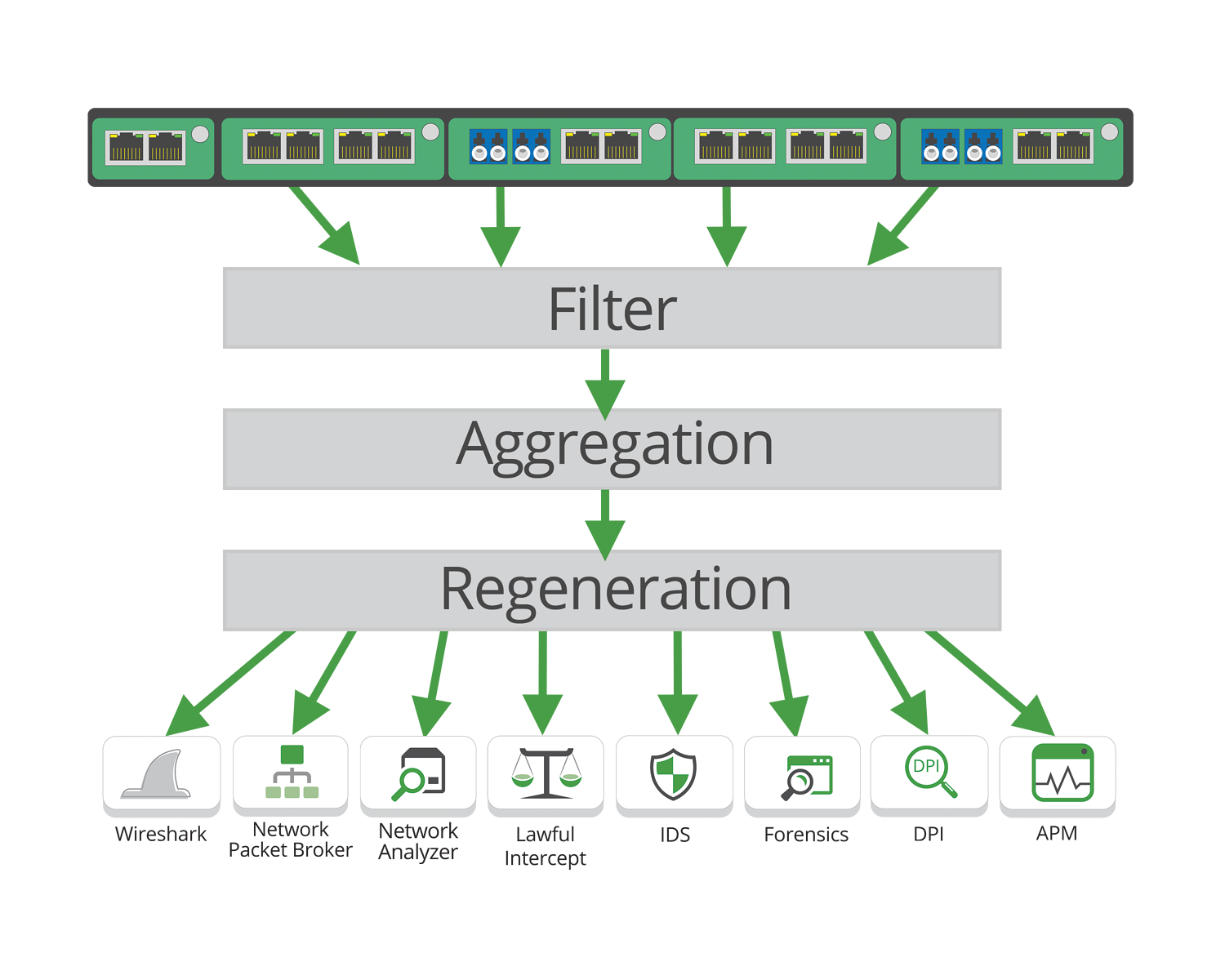

Modular Packet
Broker System
|
機箱列表 |
|||
|
Model |
Chassis/TAPs |
電源 |
尺寸(WxHxD) |
|
1U; up to 4 TAPs |
Dual Internal AC |
17.40” x 1.75” x 13.45” (441.96mm x 44.45mm x 341.63mm) |
|
|
M1G1DCE |
1U; up to 4 TAPs |
Dual Internal DC |
|
|
M1G2ACE |
2U; up to 12 TAPs |
Dual Internal AC |
17.40” x 3.47” x 13.45” (441.96mm x 88.14mm x 341.63mm) |
|
M1G2DCE |
2U; up to 12 TAPs |
Dual Internal DC |
|
|
M1GC* |
管理控制卡：Ethernet with GUI 以及 Serial with CLI for M1GxxE |
||
|
*未安裝控制卡或TAP模組的空位，出貨預設會安裝空白擋板。後續可依需求增加。 *此1U/2U機箱列表取代舊有1U/2U機箱，包含以下型號：M1G1AC / M1G1ACS / M1G2AC / M1G2ACS / M1G1DC / M1G1DCS / M1G2DC / M1G2DCS。 EOL 宣告 |
|||
|
Filtering TAP模組列表 |
|||||||||
|
Model |
Network Speed |
介面 |
運作模式 |
Link Speed Synch |
|||||
|
Network |
Monitor |
breakout |
aggregation |
regeneration |
filtering |
bypass |
|||
|
M1GCCF |
10/100/1000M |
2 Copper-RJ45 |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
|
M1GCSF |
10/100/1000M |
2 RJ45 |
2 SFP |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
|
M1GMCF |
1G |
2 SX Multi-mode, |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
Yes |
No |
No |
|
M1GMSF |
1G |
2 SX Multi-mode, |
2 SFP |
Yes |
Yes |
Yes |
Yes |
No |
No |
|
M1GSCF |
1G |
2 LX Single-mode, |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
Yes |
No |
No |
|
M1GSSF |
1G |
2 LX Single-mode, |
2 SFP |
Yes |
Yes |
Yes |
Yes |
No |
No |
|
Breakout TAP模組列表 |
|||||||||
|
Model |
Network Speed |
介面 |
運作模式 |
特色 |
|||||
|
Network |
Monitor |
breakout |
aggregation |
regeneration |
filtering |
bypass |
|||
|
M100CCB* |
10/100M |
2 RJ45 Passive |
2 RJ45 |
Yes |
No |
No |
No |
No |
Passive |
|
M1GCCB |
10/100/1000M |
2 RJ45 |
2 RJ45 |
Yes |
No |
No |
No |
No |
Link Synch with Fail Safe |
|
Aggregation TAP模組列表 |
||||||||
|
Model |
Network Speed |
介面 |
運作模式 |
|||||
|
Network |
Monitor |
breakout |
aggregation |
regeneration |
filtering |
bypass |
||
|
M1GCCBP |
10/100/1000M |
2 Copper-RJ45 |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
No |
Yes |
|
M1GCSBP |
10/100/1000M |
2 Copper-RJ45 |
2 SFP |
Yes |
Yes |
Yes |
No |
Yes |
|
M1GMCA |
1G |
2 SX Multi-mode, |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
No |
No |
|
M1GMSA |
1G |
2 SX Multi-mode, |
2 SFP |
Yes |
Yes |
Yes |
No |
No |
|
M1GSCA |
1G |
2 LX Single-mode, |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
No |
No |
|
M1GSSA |
1G |
2 LX Single-mode, |
2 SFP |
Yes |
Yes |
Yes |
No |
No |
|
Bypass TAP模組列表 |
|||||||||
|
Model |
Network Speed |
介面 |
運作模式 |
Packet Injection Support & Packet Slicing |
|||||
|
Network |
Monitor |
breakout |
aggregation |
regeneration |
filtering |
bypass |
|||
|
M1GCCBP |
10/100/1000M |
2 RJ45 |
2 RJ45 |
Yes |
No |
No |
No |
No |
Yes |
|
M1GCSBP |
10/100/1000M |
2 Copper-RJ45 |
2 SFP |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
|
M1GMCBP |
1G |
2 SX Multi-mode, |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
|
M1GMSBP |
1G |
2 SX Multi-mode, |
2 SFP |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
|
M1GSCBP |
1G |
2 LX Single-mode, |
2 Copper-RJ45 |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
|
M1GSSBP |
1G |
2 LX Single-mode, |
2 SFP |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
